| Type |

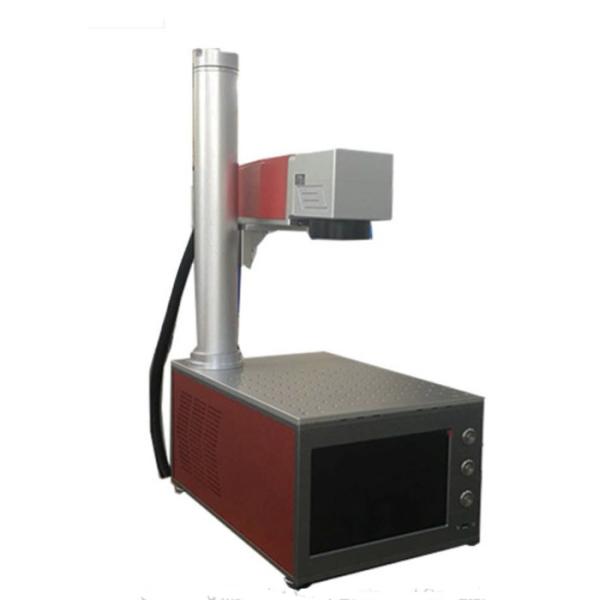

Fiber laser marking machine |
| Size |
75*55*83cm |
| Gross Weight |
55kg |
| Laser power |
20/30/50w |
| Laser wavelength |
1064nm |
| Power supply |
220V±10%/50Hz/4A |
| Repeating precision |
±0.002 |
| Repeating frequency |
±0.002 |
| Marking range |
110x110mm(customize) |
| Marking depth |
0.01~1mm |
| Marking speed |
7000mm/s |
| Minimum character |
0.15mm |
| Minimum line width |
0.01mm |
| Marking content |
Graphics, text, bar codes, two-dimensional code,
date, batch number, serial number
|
Product description
First, greater scope and finer optical efficiency.
3D marking can be divided into two types: front focusing and rear focusing. When using the front focusing mode, the main purpose is to achieve a larger marking range. Generally, larger X-axis and Y-axis deflection lenses can allow the incident laser spot to be larger, and get smaller focusing spot and higher energy density. Please.
Product applicaiton
wo, variable focal length to achieve three-dimensional marking.
Because 3D marking can rapidly change the laser focus and laser beam position, it is possible to mark curved surfaces which can not be realized by previous 2D marking. After using 3D marking, the marking of the cylinder in the light projection range can be completed at one time, which greatly improves the processing efficiency. Moreover, the surface shape of many parts of industrial products is not only plane, for the processing of 2D marking is really powerless, at this time, 3D marking is easier to achieve.
Product advantage
Three, more suitable for deep carving.
There are inherent defects in traditional 2D marking for deep carving of object surface. With the focus of laser moving up in the process of carving, the laser energy acting on the actual surface of object will be dramatically reduced, which seriously affects the effect and efficiency of deep carving.
Different types of silica gel products will engrave a number of different text, patterns, two-dimensional code, logo, trademarks and other information, the existence of these information can better guide consumers to buy a choice, if all the silica gel products are identical without any content, then may lose part of the consumer group. Today's society is a diversified equipment, a single form of products can not meet the diversified needs of consumers, so the diversified labeling of silica gel products can not be separated from the existence of laser marking machine.
Packing and shipping
Packing in wooden case,75*55*83cm The machine gross is 55 KG, you can use express delivery. If more than 75KG, you can choose sea transportation.
| Delviery time |
7-15 working days |
| Type of shipping |
Express,air or sea |
| Terms of payment |
T/T,credit card,western union,paypal |
| package size |
75x55x83cm |
| Gross weight |
55KG |
