7000Mm Marking Speed Metal Laser Marker , Fiber Laser Engraving Machine
Working principle
The lens, which can effectively reduce the size of the detector, is called a field mirror, working near the focal plane of the objective lens,It is mainly used in laser marking machine to homogenization non-uniform illumination on the photosensitive surface of the detector.This laser marking machine can marking on home decoration and decoration,some metal parts.
Fiber Laser Engraving Machine parameter
Laser power | 10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content | Graphics, text, bar codes, two-dimensional code,
date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
| 220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours
|
Application

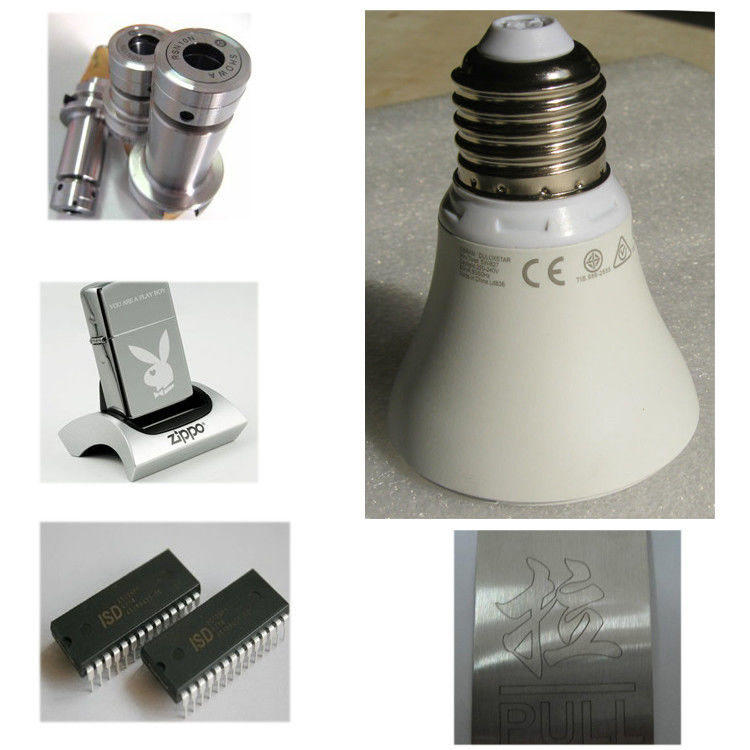

Can be used in faucets, bathrooms, plastic switches, metal doors, light bulbs, on top of the marking, marking effect is beautiful.
Usage method
Select the appropriate working environment, the fiber laser marking machine access 110V, 220V constant voltage. By adjusting its height, marking frequency, scanning speed, marking power, line filling speed, to achieve accurate marking.
Product features
Beyond the traditional YAG laser, using a Q-switched master oscillator and a high-power laser amplifier (MOPFA), a periodic pulse train with a peak power of up to 7KW is generated at a wavelength of about 1064 nm.The laser marks the pattern is permanent, cannot change, cannot wipe.
.
FAQ
Fiber laser marking machine service life? Can work 100000 ~ 200000 hours.Engineers patiently explain the use of fiber laser marking machine, from church customers to teach customers, not only to meet customer marking requirements, but also to help customers analyze marking design
Design feature
Fiber laser marking machine, CNC focus, red positioning. By reading the input information, accurate industrial marking. Optical protective cover to achieve laser protection, with a solid, stable features.
Product features
Engineers patiently explain the use of fiber laser marking machine, from church customers to teach customers, not only to meet customer marking requirements, but also to help customers analyze marking design
Packing and shipping
Packing by corrugated board boxes, Light weight, freight is lower.But the laser marking machine use the wooden case will be better,because the gross is 133kg.
Aftersale service
laser equipment problems, free replacement at any time, and can assist in maintenance and repair.
Chuke Factory
The quality of the company is the soul of our enterprise. 10 years of insistence, let us have an excellent reputation in the industry. Attentively service makes customers more reliable to us. Professional design, considerate after sale, let our products are sold to the four seas, won the domestic and foreign customers unanimous praise! We firmly believe that through the joint efforts of Chongqing Zixu Machine Works, we will enable all enterprises to have their own identification system, and successfully create the anti-counterfeiting and traceability system of enterprises.
