OEM Price Desktop 2d data matrix dot pin marking machine for nameplate
Model PMK-D01
1. Desktop Stand-alone marking machine ,with 7"LCD controller,NO NEED extra computer;
used conveniently,friendly software interface,very easy to use.
Rotary fixture, Suitable for various pipe marking, external diameter within 100mm, internal diameter 40-80mm;
2. Other support fixture device:
- a. Pneumatic name plate fixture suit for various plates marking.
- b. Manual name plate fixture (customied supported) .
3.Dot Peen marking equipment, is a permanent, direct part marking process using a carbide pin
to indent the marking surface to form dotted lines, logos and 2D Data Matrix bar codes.
| model | Pneumatic marking machine |
| weight | 50kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |

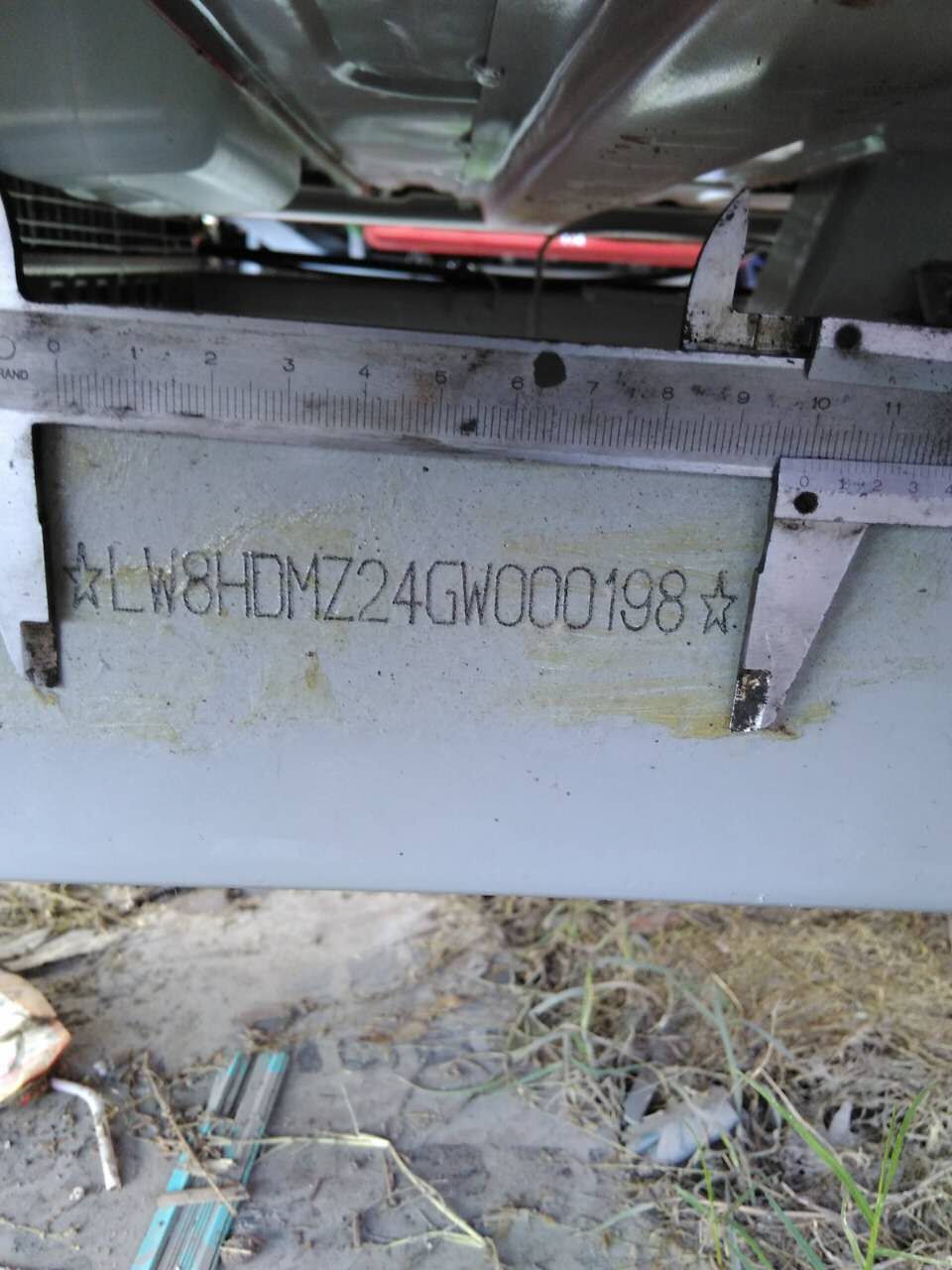

Marking samples
How about the software?
Multi-languages, serial No., Arabic numerals, arbitrary figure, incrementing serial No., graphics,
VIN code, time, date, barcode reading marking, ticket, dot matrix, 2D code(two-dimension code),
circumferential parts marking and connected to database marking.
Available in a variety of languages (including English, French, German, Spanish, Swedish, Finnish,
Italian, Portuguese, Cyrillic and Czech), the software also contains features such as serial numbering, date and
time marking and password protection.Support multiple graphics and fonts,compatible with AutoCAD, CorelDraw.Flexible and user-friendly software, compared with the same numbers.
Database: Marking report available, special fonts and graphics editor.
Return and feedback
- As we do not have the maintenance department at overseas, you can send back the problem spare parts to maintenance or replacement the new spare parts.
- We depend on our domestic reputation and customer satisfaction to succeed. Therefore, your feedback is extremely important to us.
After-sales Services
- One year guarantee for main machine (People damaged are charged).
- Full technical support by e-mail, call and video
- Lifelong maintenance and spare parts supply.
- Free design of fixtures as customers required.
- Free training installation and operation for the staffs.
Chuke Factory
Chongqing Chuke intelligent machinery equipment Co.,ltd is a subsidiary of Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine,500 sets dot peen marking machine and electric marking machine,more over 100000 pieces marking stylus.Products are exported to all countries in the world,Such as the India, Spain, France, Germany, the United States, Brazil, South Korea and other more than and 30 countries . After we continue to improve and perfect the product quality has been achieved CE, ISO9001, FDA, TUV certificate, won the domestic and foreign large
